The Band Pass Filter Micro-4201-C4 filter consists of 4 quarter wavelength cavities. The housing is made of extruded aluminium, the chassis of galvanized steel. The filter is black coated prevent corrosion. Narrow pass band range with low insertion loss, high stop band attenuation.

It can be used:

  • To improve the input selectivity of receivers and amplifiers
  • To increase the isolation of transmitters, whose re-spective antennas are mounted close together
  • To suppress noise sidebands and intermodulation products
ElectricalMicro-4201-C4
Frequency range, MHz400-470
Band pass, MHz4-5
Power input (max), W150
Insertion loss, dB< 2.0
Impedance, Ohms50
VSWR> 20 (< 1.22)
Mechanical
ConnectorsN-female
Temperature range, °C-30...+60
Dimensions (LxWxH), mm235 x 105 x 32
Net weight lb. (kg)1.5 (0.7)

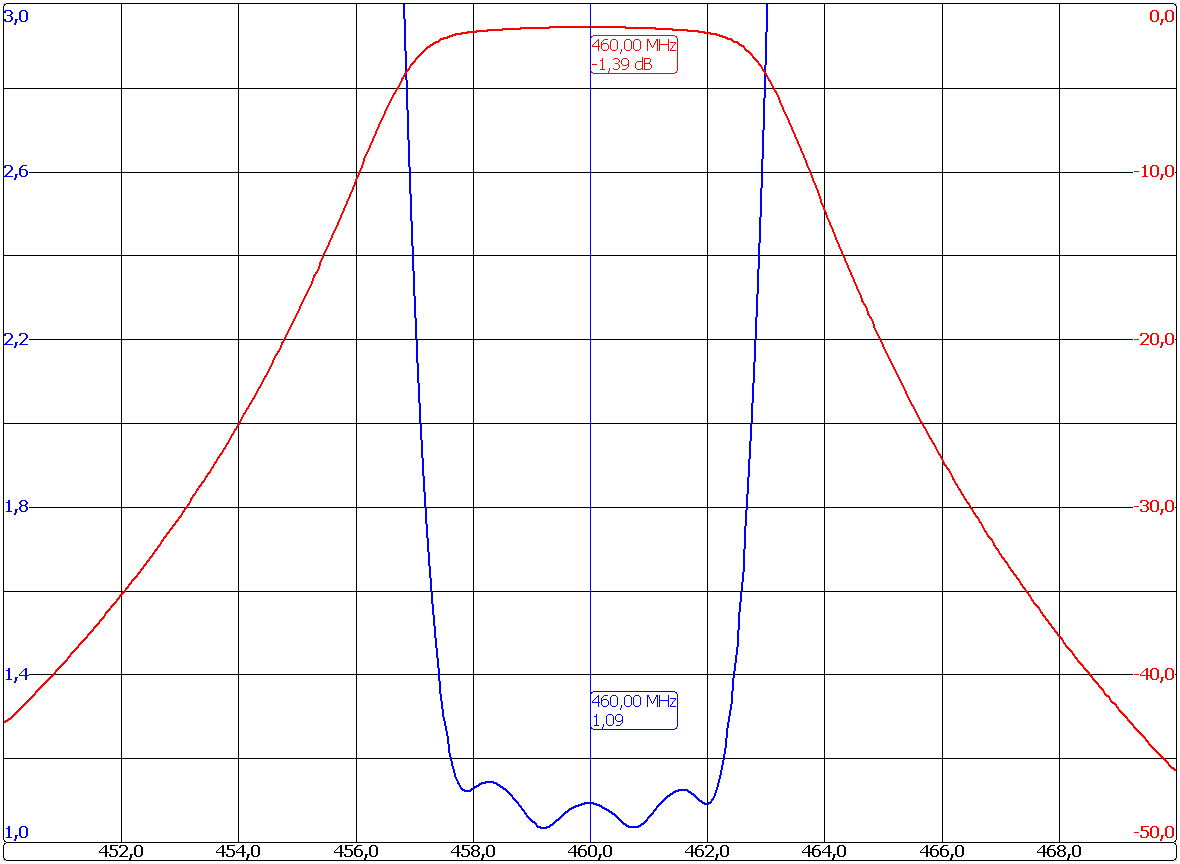

Band Pass Filter MICRO-4201-C4 Graph
