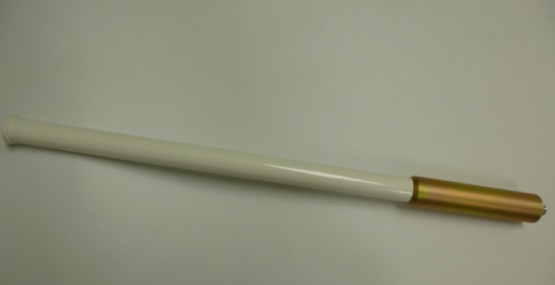

UHF UNIT GAIN FIBERGLASS ANTENNA w/Mast Mount MICRO-A460-1



UHF UNIT GAIN FIBERGLASS ANTENNA w/Mast Mount MICRO-A460-1

Model

MICRO-A460-1

Antenna Type

Base station nondirectional

Frequency range, MHz

400-470

Bandwidth, Mhz

5

Gain factor, dB

5

Max. input power (continuous-duty), Wt

100

Radiation pattern

Omni

Polarization

Vertical

Horizontal Beamwidth, deg

360

Vertical Beamwidth, deg

27

Electrical Downtilt, deg

0

Impedance, Ohms

50

VSWR

< 1:1,5

Mounting

Series-feed array

Temperature range,Celcius

-40...+80

Connector

N-female

Dimensions (HXWXL), mm

1920X40X40;

Weight, kg

< 2,2

Diameter of mast, mm

30-55

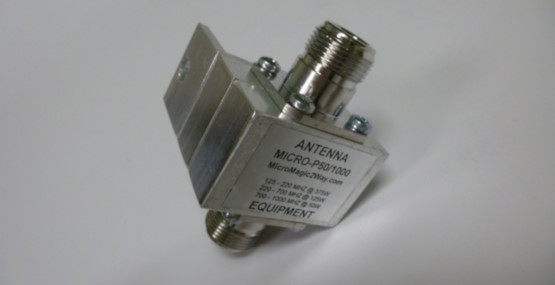

Flange Arrestor-N/F-125-1000MHz MICRO-P-50/1000

Flange Arrestor-N/F-125-1000MHz MICRO-P-50/1000

Model

Micro-P-50/1000

Frequency range, MHz

50-1000

Max. input power (continuous-duty), Wt

HF-100; VHF-70; UHF-50

Insertion loss, dB

< 0,1

Impedance, Ohms

50

VSWR

50-650 Mru - < 1:1,1; 650-1000 Mru - < 1:1,2

Voltage (dc), V

< 230

Turn-on Voltage(dc), V

230

Turn-on Voltage for 1kV/mks, V

< 600

Connectors

N-female

Dimensions (H X W X L), mm

40 X 50 X 70

Weight, kg

0,2
