VHF Compact Duplexer Micro - 1501-C6

VHF Compact Duplexer Micro - 1501-C6
Description

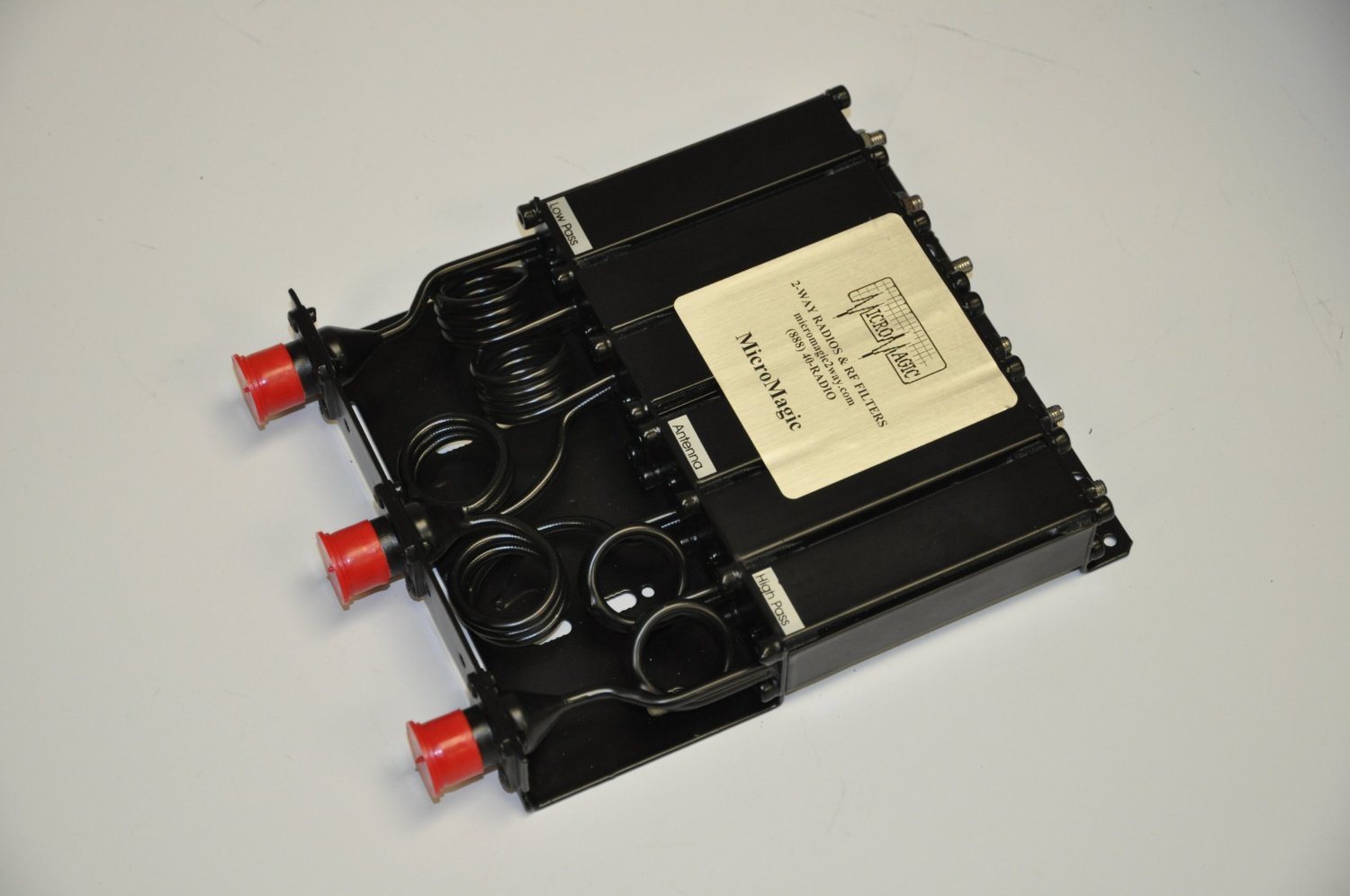

Compact duplexer MICRO-1501-C6 is meant to provide frequency isolation between transmitting and receiving channels. Combining small geometry with low loss and close frequency spacing with selective pass characteristics this duplexer is ideal for use in systems with low-to-medium power repeaters where small physical dimensions of equipment are critical.



MODEL

MICRO-1501-C6

Frequency spacing, MHz

4-6; 6-8; 8-10

& 22-30 (for frequency range of 145-175)

Frequency range, MHz

145-163; 150-175

Max. input power (continuous-duty), W

50

Insertion loss RX-ANT, dB

< 1,5

Insertion loss ANT-RX, dB

< 1,5

RX isolation ANT-RX, dB

> 80

TX noise suppression TX-ANT, dB

> 80

Impedance, Ohms

50

VSWR

< 1:1,5

Mechanical



Connectors

N-female

Temperature range, °C

-30°...+60°

Dimensions (HxWxL), mm

30 x 156 x 232

Weight, kg

< 1,1

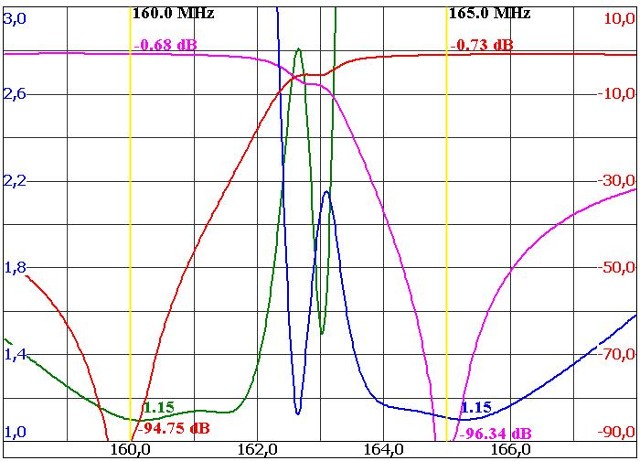

50W VHF Duplexer Graph
