UHF Compact Duplexer Micro-4201-C6

UHF Compact Duplexer Micro-4201-C6
Description

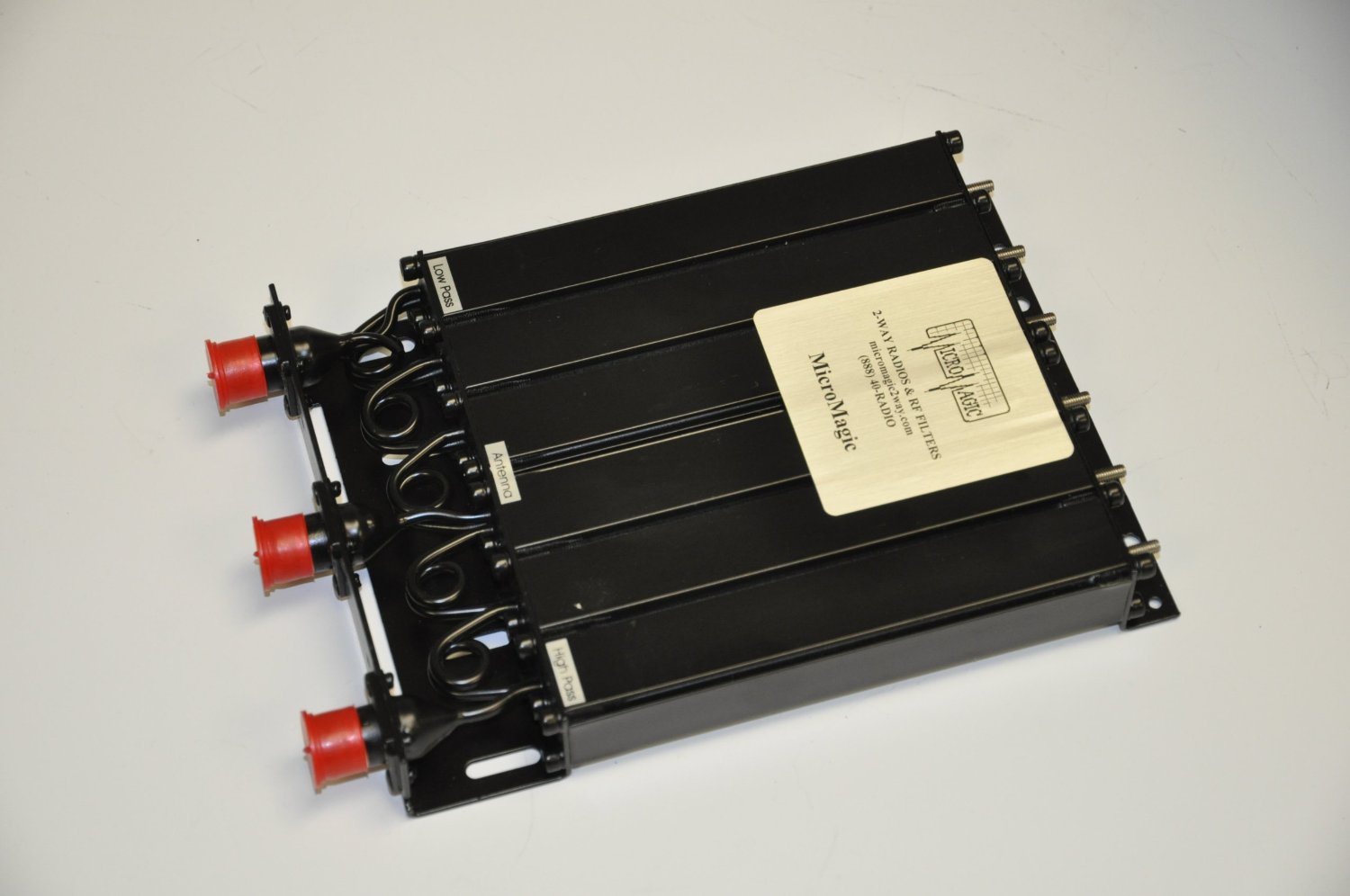

Duplexer MICRO-4201-C6 utilize six high-Q notch-type coaxial resonators with 1”-cross-section that results in small geometry advantages without compromising duplex isolation. The duplexer is tunable within the operating frequency range.


MODEL

MICRO-4201-C6

Frequency spacing, MHz

5-7; 7-9; 9-15

Frequency range, MHz

400-430, 430-450, 450-470, 470-490

Max. input power (continuous-duty), W

50

Insertion loss RX-ANT, dB

< 1,5

Insertion loss ANT-RX, dB

< 1,5

RX isolation ANT-RX, dB

> 80

TX noise suppression TX-ANT, dB

> 80

Impedance, Ohms

50

VSWR

< 1:1,5

Mechanical



Connectors

N-female

Temperature range, °C

-30°...+60°

Dimensions (HxWxL), mm

30 x 156 x 232

Weight, kg

< 1,1

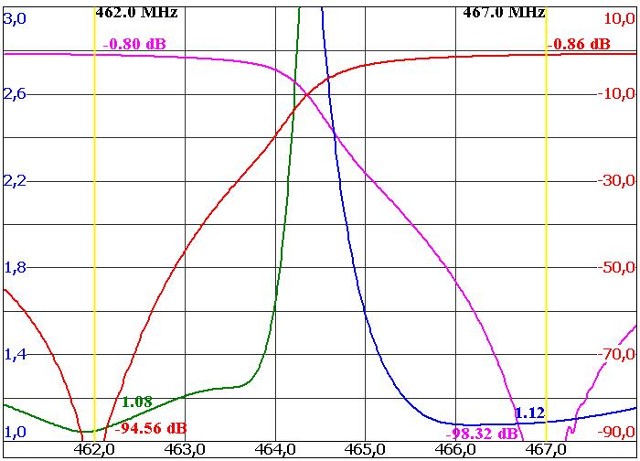

50W UHF Duplexer Graph
