VHF Compact Duplexer Micro - 1502-C6

VHF Compact Duplexer Micro - 1502-C6
Description

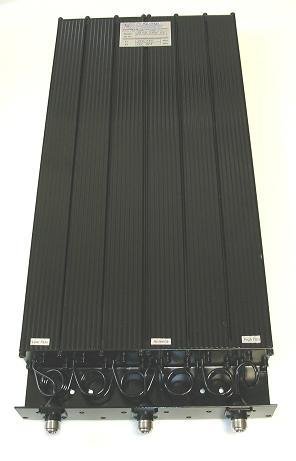

Duplexer MICRO-1502-C6 utilizes six high-Q notch-type coaxial resonators with 2"-cross-section that results in small geometry advantages without compromising duplex isolation. The resonators are made of extruded aluminum passivated inside and outside with the galvanized steel chassis and Teflon insulation has been applied in the coaxial cables and in the connectors.



MODEL

MICRO-1502-C6

Frequency spacing, MHz

1-2; 2-4; 4-6; 6-8; 8-10

Frequency range, MHz

140-156; 154-175

Max. input power (continuous-duty), W

150

Insertion loss RX-ANT, dB

< 1,5

Insertion loss ANT-RX, dB

< 1,5

RX isolation ANT-RX, dB

> 80

TX noise suppression TX-ANT, dB

> 80

Impedance, Ohms

50

VSWR

< 1:1,5

Mechanical



Connectors

N-female

Temperature range, °C

-30°...+60°

Dimensions (HxWxL), mm

55 x 252 x 630

Weight, kg

< 5,0

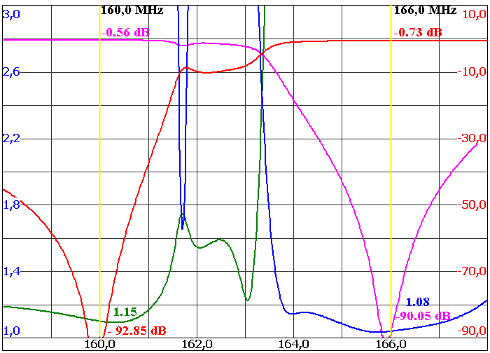

150W VHF Duplexer Graph
