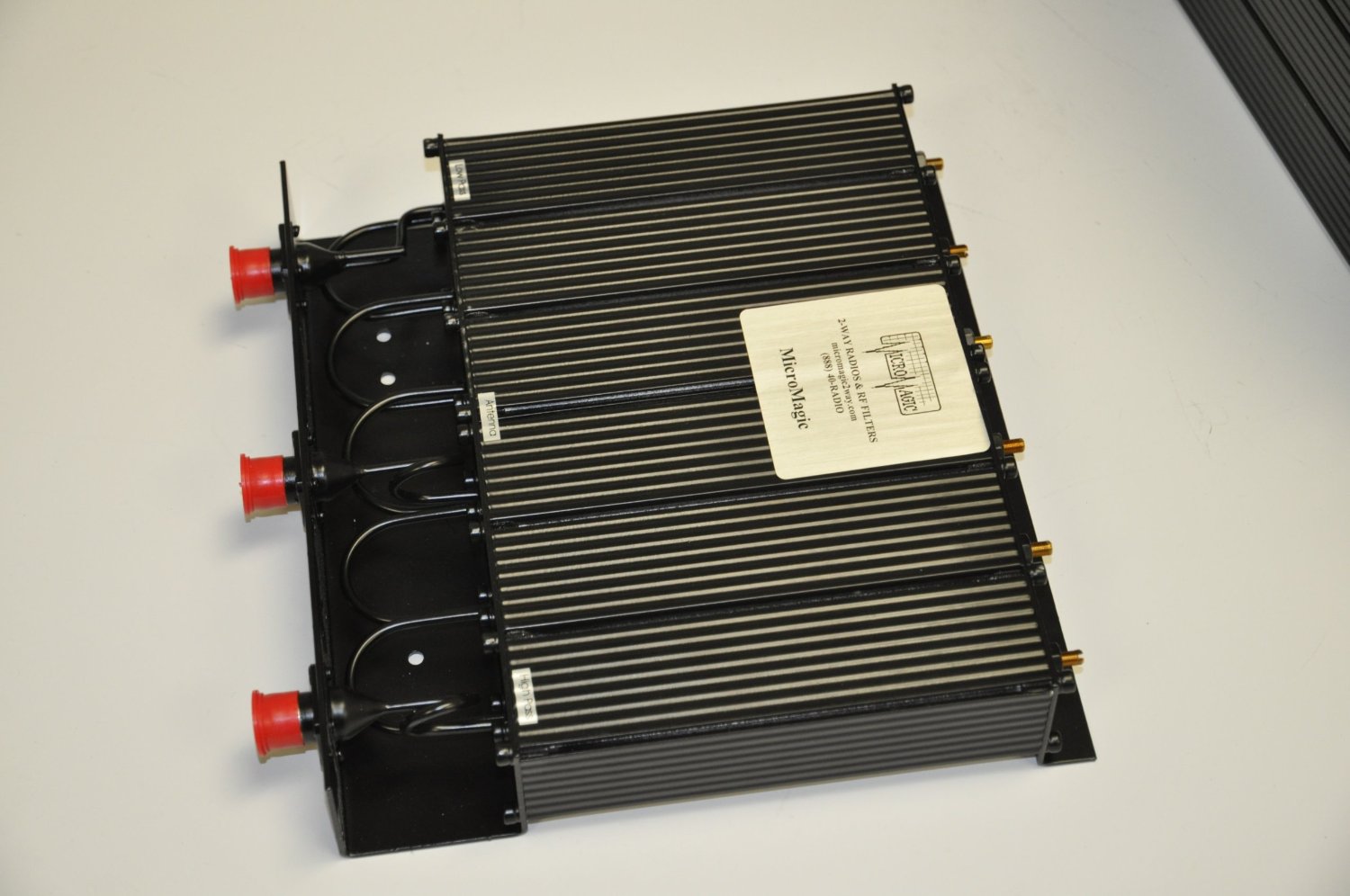

Duplexer MICRO-4202-C6 utilizes six high-Q notch-type coaxial resonators with 2”-cross-section that results in small geometry advantages without compromising duplex isolation. The duplexer is tunable within the operating frequency range.



MODEL

MICRO-4202-C6

Frequency spacing, MHz

3-4; 4-5; 9-11; 11-15

Frequency range, MHz

400-430, 430-450, 450-470, 470-490

Max. input power (continuous-duty), W

150

Insertion loss RX-ANT, dB

< 1,5

Insertion loss ANT-RX, dB

< 1,5

RX isolation ANT-RX, dB

> 80

TX noise suppression TX-ANT, dB

> 80

ImpedanceOhms

50

VSWR

< 1:1,5

   Mechanical

Connectors

N-female

Temperature range, °C

-30°...+60°

Dimensions (HxWxL), mm

55 x 252 x 260

Weightkg

< 2,5

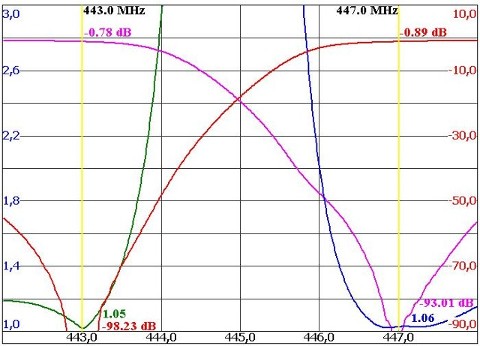

150W UHF Duplexer Graph
